VARIOKIT VCB Cantilever Bracket

Scaffold-free cantilever formwork for steel composite and precast concrete bridges

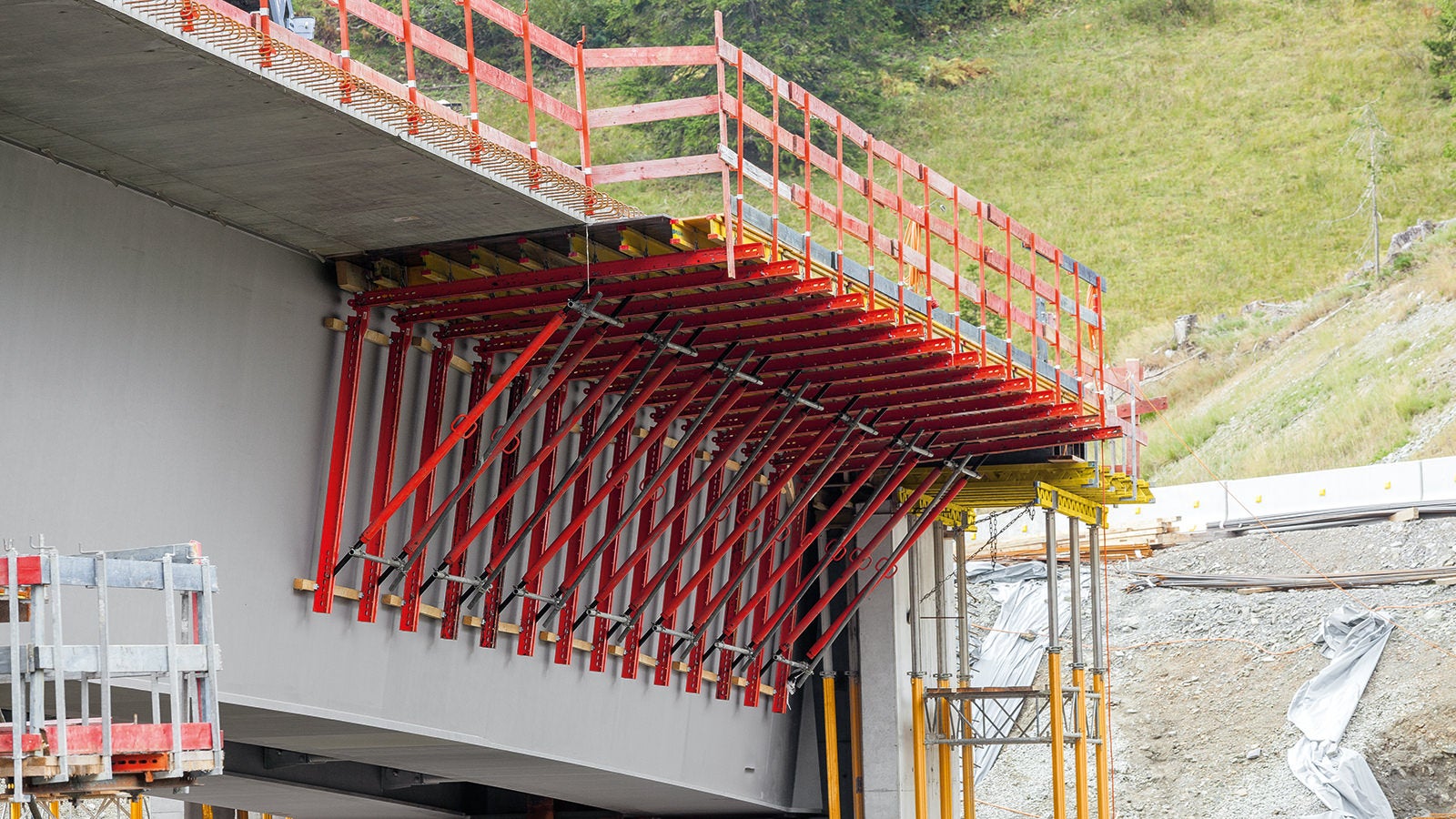

The VARIOKIT cantilever bracket VCB helps with the fabrication of bridge superstructures built according to the steel composite or semi-finished concrete element method. It is permanently fixed to the bridge structure and is moved by crane. Its main fields of application are usually bridges with a length up to 150 m, since a mobile solution is often not necessary in this case.

The completion of the VARIOKIT construction kit with some few anchoring parts leads to rentable solutions for many different applications. For example, the anchoring can be either operated from below or from above. Following the VARIOKIT principle, the construction components can be optimally loaded due to the selection of the influence width, with the aim of always finding the most cost-effective solution.

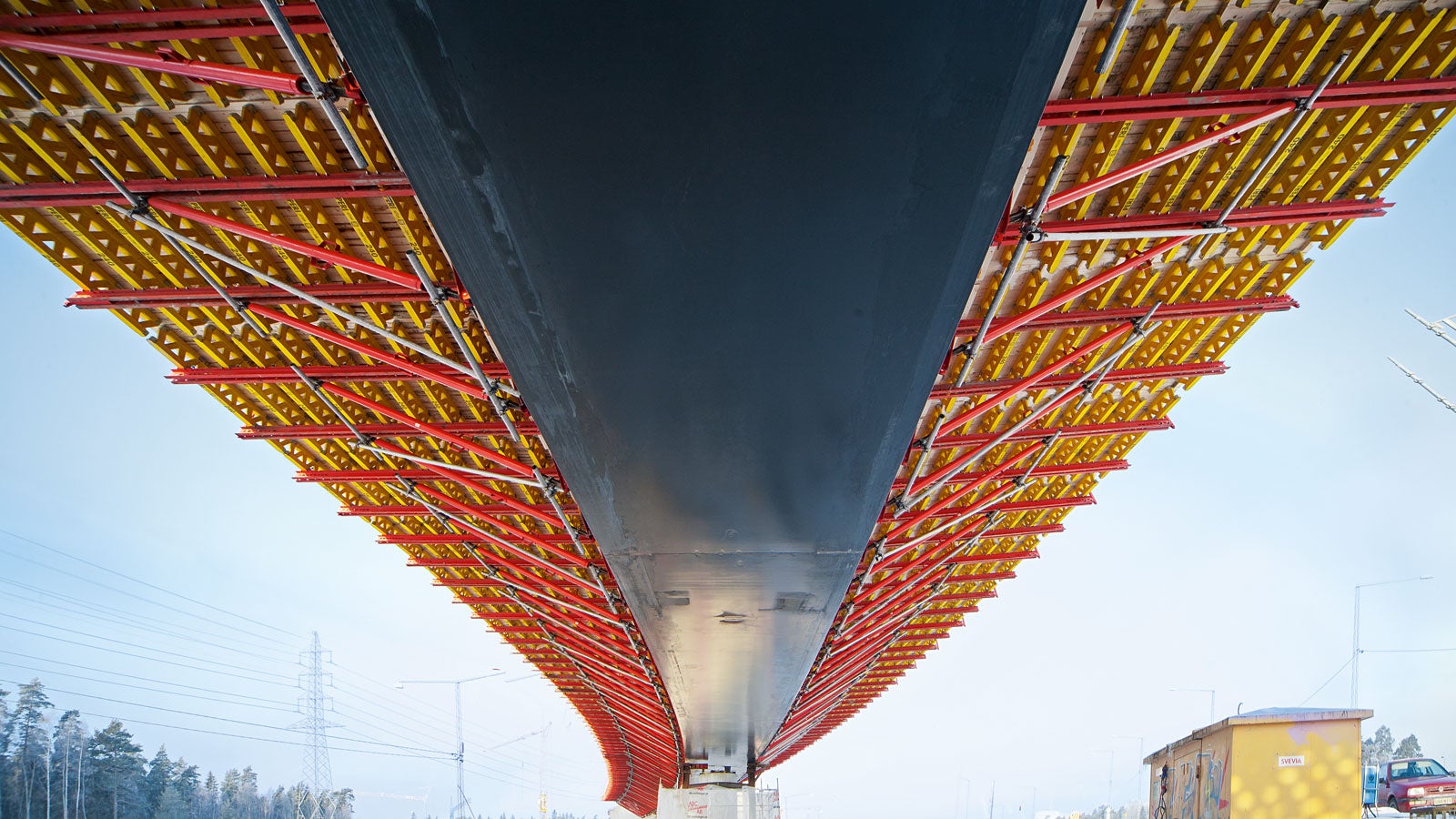

VARIOKIT VCB Cantilever Bracket in action

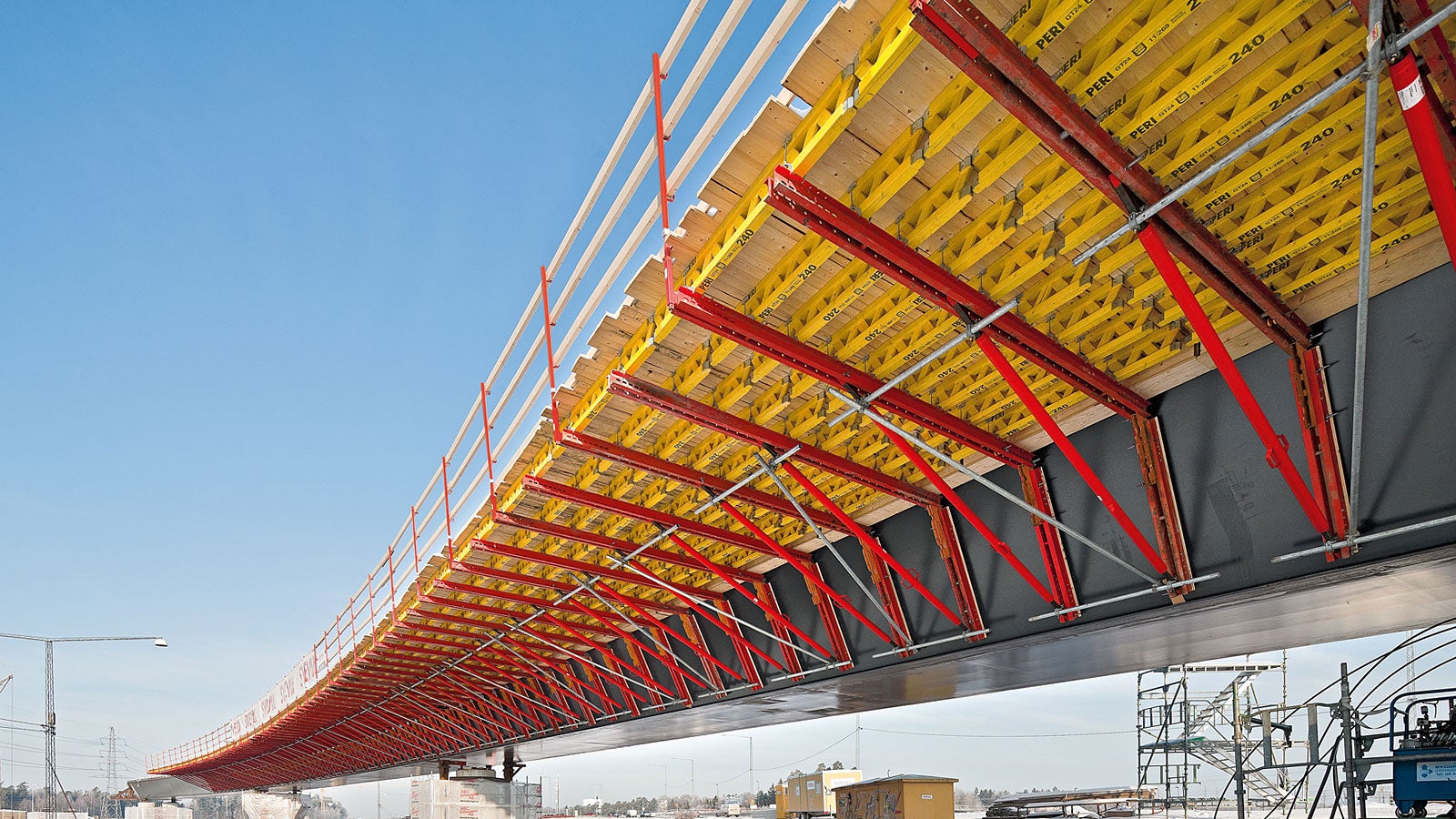

Vast range of applications

The bracket can be individually adjusted to the cantilever geometry.
Simple attachment

The cantilever bracket can be attached without penetrating the carriageways slab.

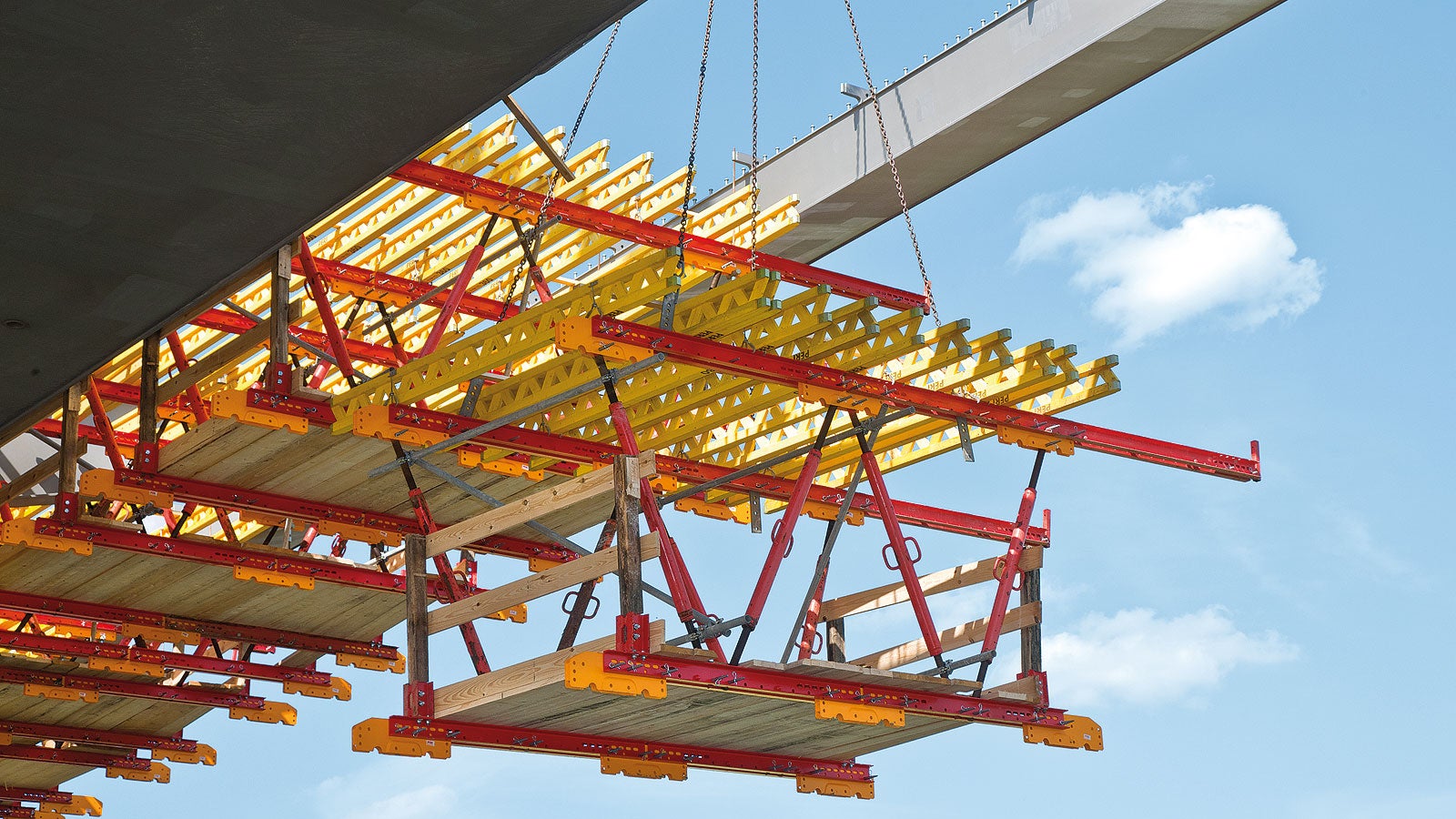

Low own weight

The lightweight formwork units make fast and easy moving to the next concreting section possible with a crane.
